Factsheets
- Project Specifics: Developer (Bayswood Pte Ltd), Address (2C Mandai Estate), Land Size (4,779.90 m²), and Freehold tenure.
- Scale and Timeline: A total of 69 units (including one canteen), with an Expected Vacant Possession date of 31 Dec 2028 and Expected Legal Completion of 31 Dec 2031.
- Facilities: Details on the number of carpark lots (32), motorcycle lots (2), and bicycle lots (40). It also specifies the capacity and size for the 2 Passenger Lifts (825kg each) and 2 Goods Lifts (2,500kg each).
- Consultants: A list of key professional consultants, including the Architect (ID Architects Pte Ltd), MEP Consultant, C&S Consultant, and Main Contractor (Century Building Construction Pte Ltd).
Mandai Estate
- Loading and Accessibility:

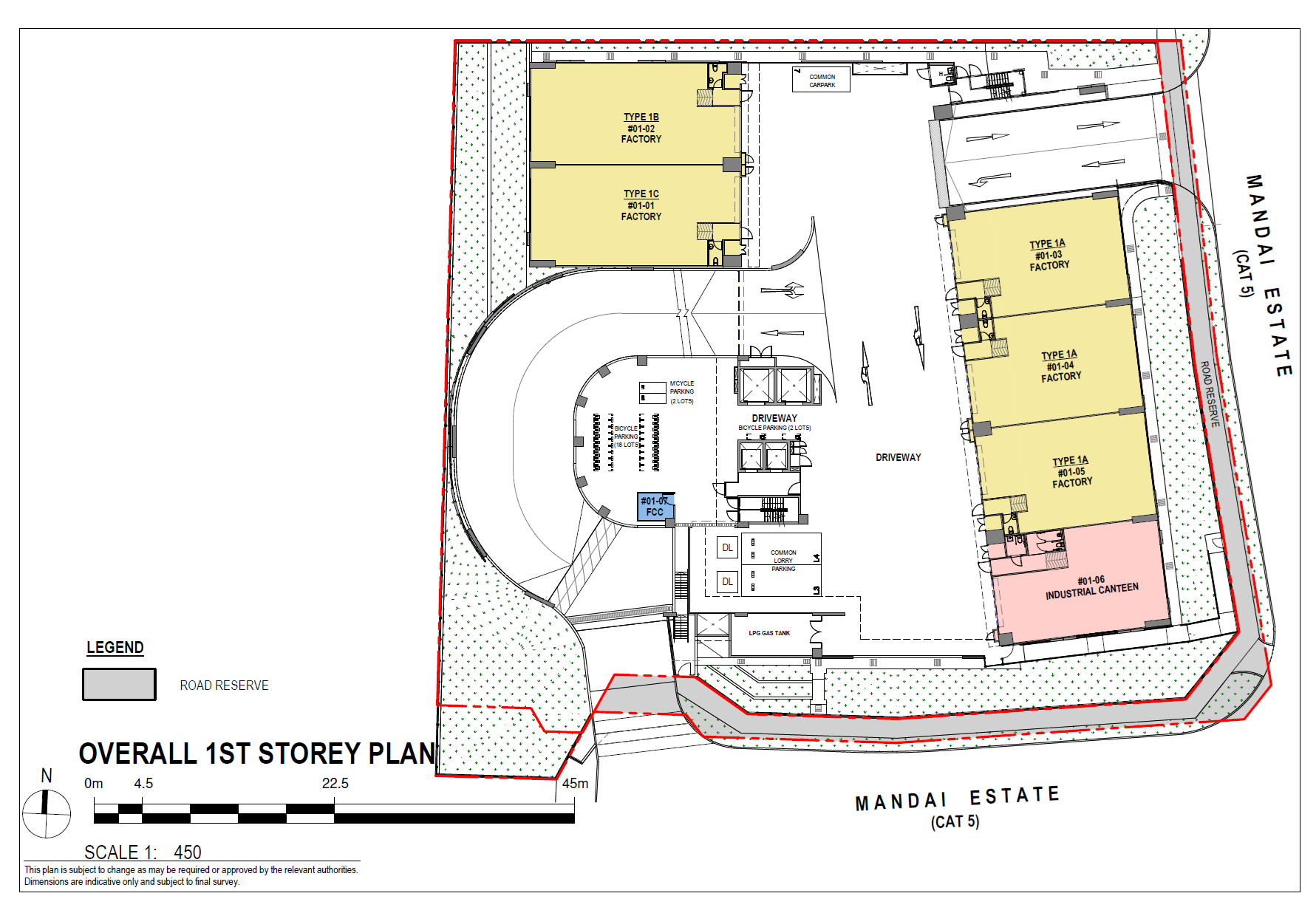

- Loading Bay: Level 1 has one 20-footer container loading/unloading bay and one 14-footer lorry lot. The developer will provide a forklift. The Basement provides two 14-footer lorry lots.
- Driveway Width: The Level 1 driveway is 12m wide, and Levels 2 to 10 have a 7.4m driveway.
- Height Limit: The height limit is 4.5m for Level 1 and 3.5m for Levels 2 to 10.
- Vehicle Access (Lvl 2-10): Only 14ft rigid vehicles (less than 7.5m) can access Levels 2 to 10.
- Building Systems:
- Security: There will be a 24-hour accessibility security system.
- Parking: The parking system is an ERP hourly parking system.
- Ventilation: The B1 Lift Lobby uses Mechanical Ventilation, while all other floor lift lobbies use Natural Ventilation.
- Eco-Friendly Features:
- Solar Panels: Solar panels will be installed on the rooftop after Temporary Occupation Permit (TOP).
- EV Charging: All units are EV charger provision-ready. Wiring is done to a specific point, and the unit owner is responsible for installing the charger.
